| Net Weight |
1346 g |

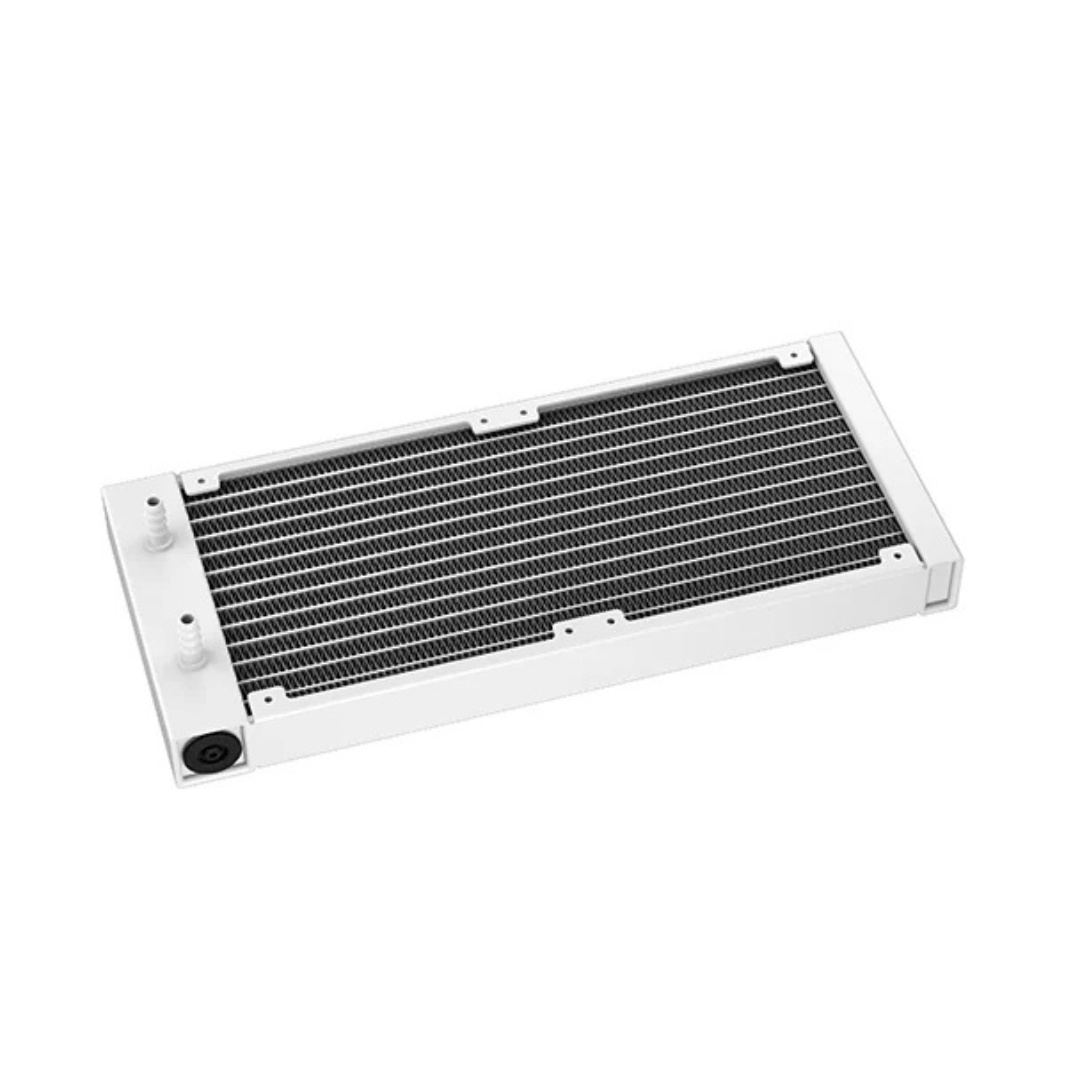

| Radiator Dimensions |
282×120×27 mm(L×W×H) |
| Radiator Material |
Aluminum |
| Tube length |
410 mm(L×W×H) |
| Pump Dimensions |
85×73×55 mm(L×W×H) |
| Pump Speed |
3100 RPM±10% |
| Pump Noise |
19 dB(A) |
| Pump Connector |
3-pin |
| Pump Rated Voltage |
12 VDC |
| Pump Rated Current |
0.38 A |
| Pump Power Consumption |
4.56 W |

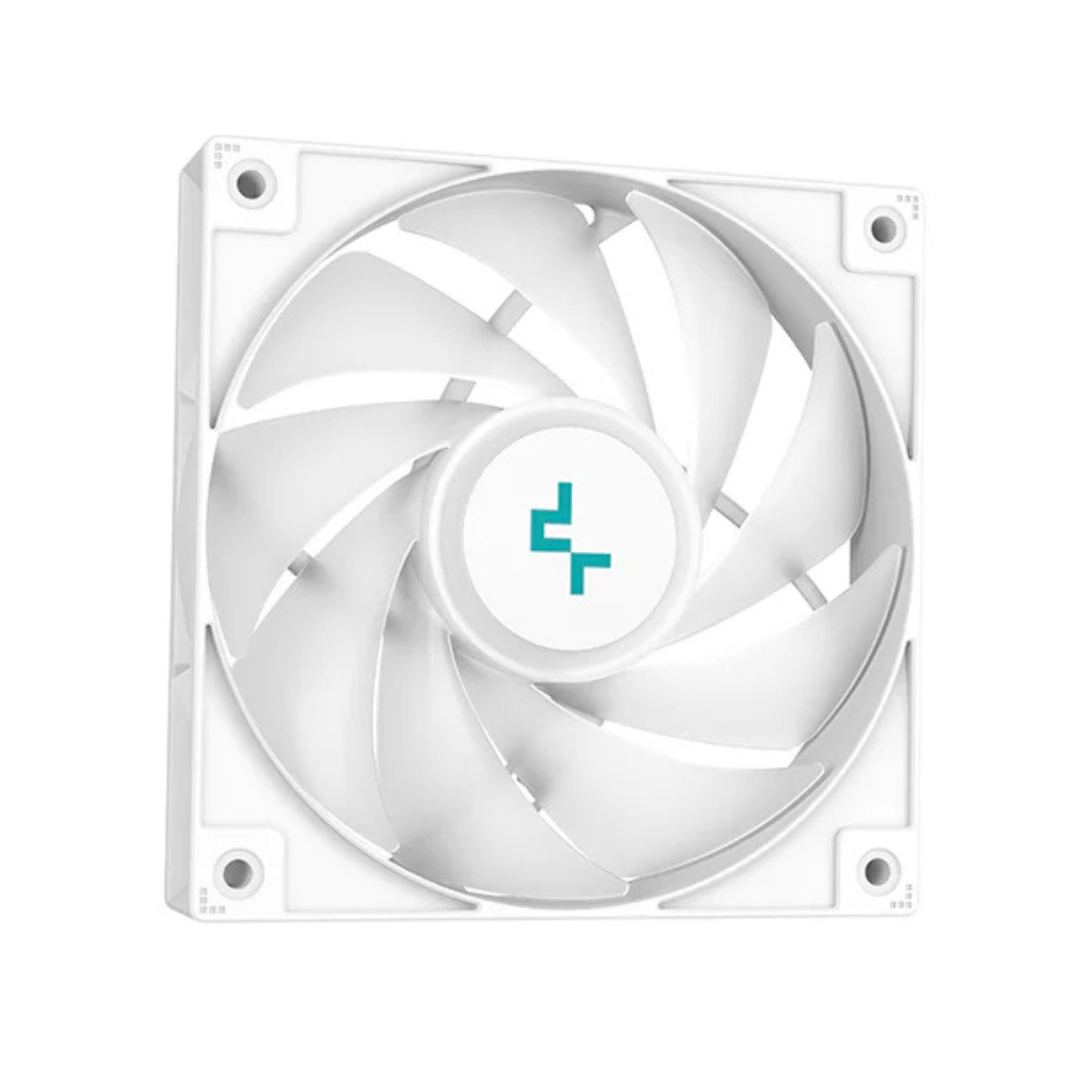

| Fan Dimensions |
120×120×25 mm(L×W×H) |
| Fan Speed |
500~2250 RPM±10% |
| Fan Airflow |
85.85 CFM |
| Fan Air Pressure |
3.27 mmAq |
| Fan Noise |
≤32.9 dB(A) |
| Fan Speed (with LSP) |
500~1600 RPM±10% |
| Fan Airflow (with LSP) |
60.85 CFM |
| Fan Air Pressure (with LSP) |
1.65 mmAq |
| Fan Noise (with LSP) |
≤28.2 dB(A) |
| Fan Connector |
4-pin PWM |
| Bearing Type |
Hydro Bearing |
| Fan Rated Voltage |
12 VDC |
| Fan Rated Current |
0.25 A |
| Fan Power Consumption |
3.0 W |
| LED Type |
Addressable RGB LED |
| LED Connector |
3-pin(+5V-D-G) |
| LED Rated Voltage |
5 VDC |
| LED Power Consumption |
2.7 W（PUMP）/ 2.1 W（FAN×2） |
| EAN |
6933412727996 |
| P/N |
R-LS520-WHAMMM-G-1 |

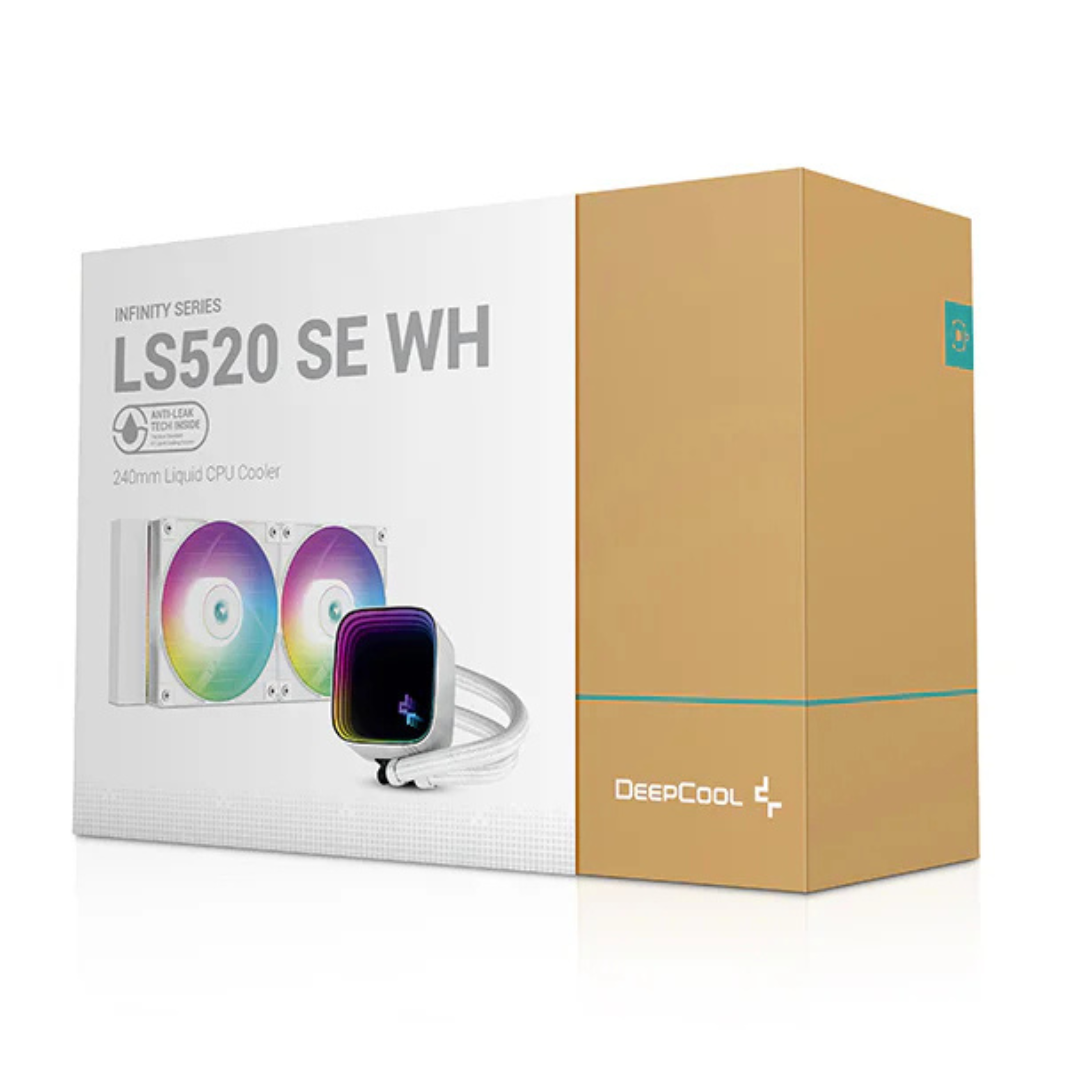

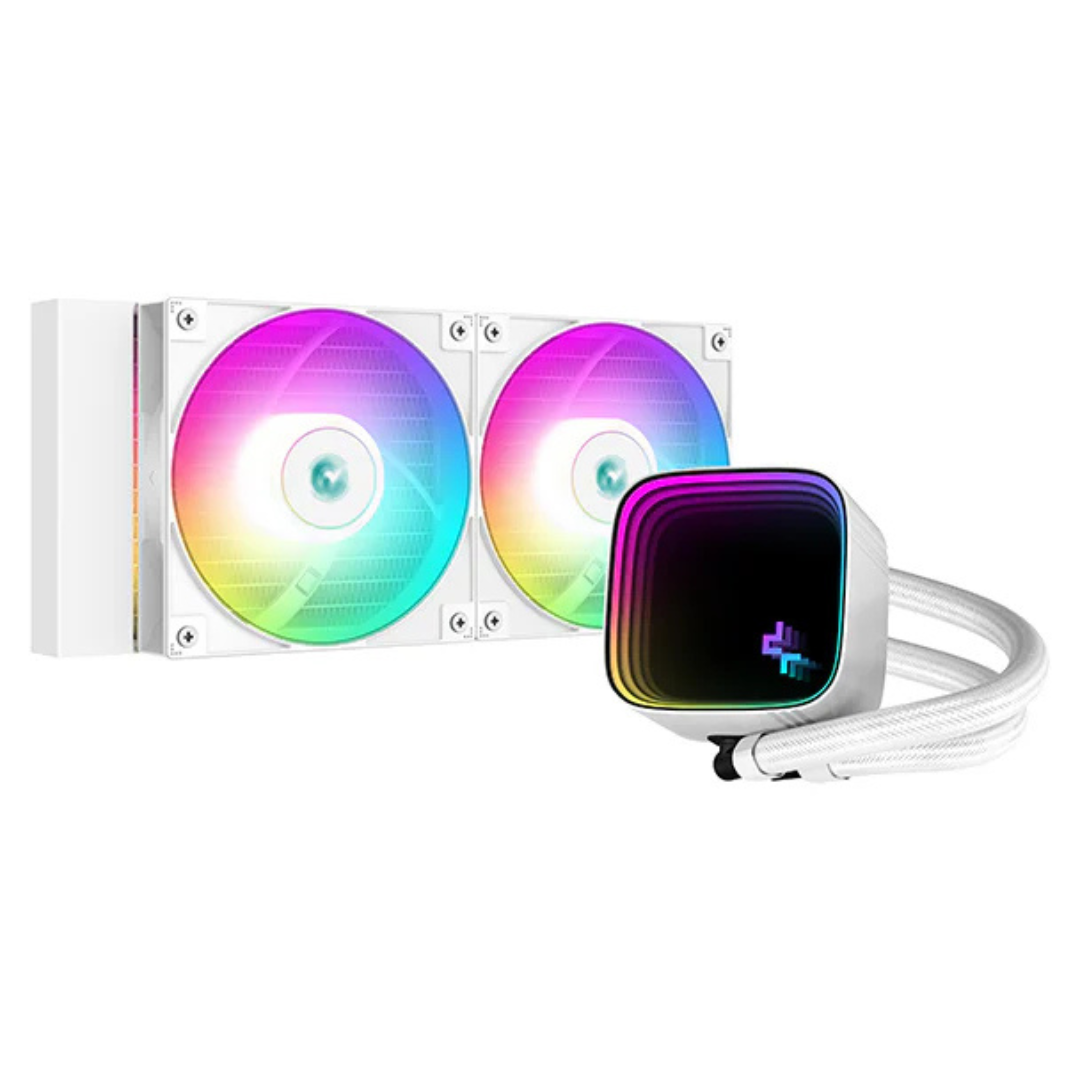

The DeepCool LS520 SE WH is an all-in-one liquid CPU cooler that provides reliable high-performance cooling built on a new water pump design for optimal results. Color coordinate to the rest of your system with a big and bright ARGB infinity mirror cover on the CPU water block and included ARGB fans.
